Audio2000's 6074U UHF Dual Channel Wireless Microphone 2 Handheld

As all the other Audio2000 wireless products, the AWM6074U system has been engineered to be dependable UHF system with a wide audio frequency range, high S/N ratio, and outstanding performance equal to that of any professional wireless systems costing much more.  This is achieved through strict component selection and high quality circuit design.  A delicately designed silence circuit eliminates static noise when the transmitters are either turned off or out of transmission range.  An auto mute circuit is incorporated in these systems to effectively eliminate the popping noise when the switch is turned on or off.

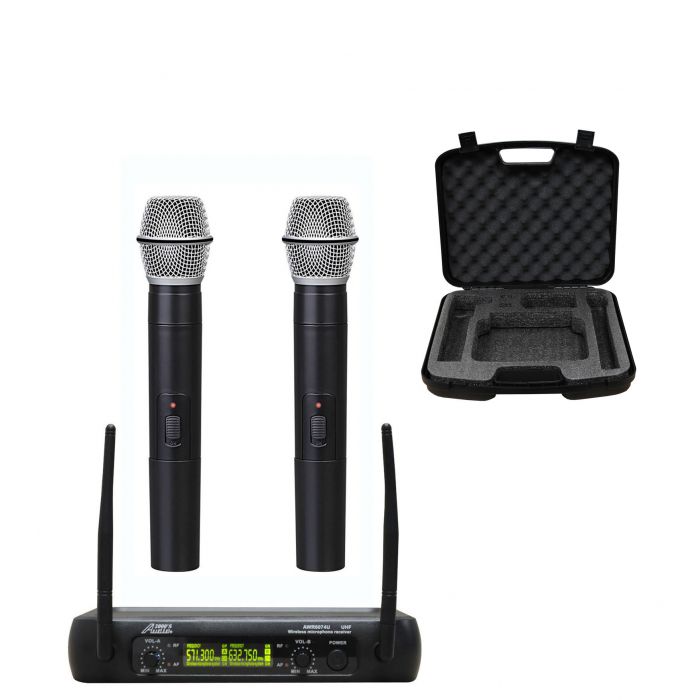

Package Included:

    * Two Wireless Handheld Microphone Transmitter
    * One AWR6074 Receiver
    * One 3Ft 1/4" to 1/4" Cable
    * 4 AA Testing Batteries

Features

    * UHF Band Frequency (571MHz - 598MHz)
    * Operation Range: 300ft Outdoor, 150ft Indoor
    * Two Independent XLR Balanced Outputs
    * One 1/4" Unbalanced Audio Output
    * RF Input with Built-in RF Preamplifier to Improve S/N Ratio, Sensitivity and Dynamic Range
    * Low Noise Mixer Circuitry for Reducing interference
    * 12V-18V DC Power Supply

Specifications

Receiver:

    * Carrier Frequency Range: UHF Band
    * Frequency Stability: ± 0.005%
    * Receiving Sensitivity: -105 dBm
    * S/N Ratio: 80dB
    * T.H.D.: < 1%
    * Audio Output: One 1/4" Mixed and Two XLR Independence
    * Dimensions (W X H X D): 8.5" X 1.6" X 5.4"

Handheld Transmitter:

    * Carrier Frequency Range: UHF Band (571MHz - 598MHz)
    * Frequency Stability: ± 0.005%
    * Modulation: Frequency Modulation (FM)
    * Modulation Depth: 40KHz
    * Output Power: 30mW, Max
    * Spurious Emission: > 55 dB
    * Battery: Two AA Battery
    * Current Consumption: < 40 mA
    * Dimensions (W X H X D) : Handheld: 9.3" X 2.0" X 2.0"
